Three Common Types of Tablet/Capsule Metal Detector

Main Features

Metal Detection: High-frequency detection (0 – 800kHz) is applicable for detecting and removing magnetic and non – magnetic metal foreign matters in capsules, including fine metal shavings and metal sieve wires embedded in medicines, so as to ensure drug purity.

Polishing and Sorting Functions: The equipment can polish capsules to remove surface dust, ensuring cleanliness and quality.

Human – Machine Interface: The equipment can record 100,000 events and store 240 product parameters, facilitating rapid replacement and production management. The touch – screen also supports PDF data export and electronic signature, meeting FDA 21CFR requirements.

Seamless Removal Structure: Features integrated injection – molding, eliminating hygiene dead – corners and tool disassembly. It’s easy to clean and meets hygiene standards. The up – down flip – plates enable rapid automatic removal, minimizing material loss during normal production.

Power – off Protection and Waste Material Management: When power is off, the removal device remains open (optional) to ensure safety. The waste outlet can be connected to a waste bottle for easy collection and disposal.

Fully Transparent Polishing Cylinder: facilitating the observation of capsule operation. It is integrally injection – molded, with no welds and no hygiene dead corners, ensuring cleanliness.

Quick Disassembly Design: The whole machine adopts a quick – connect method. Without any tools, disassembly and assembly can be completed within 5 seconds, which is simple to operate.

Separation of Product Area and Mechanical Area: Ensure that the product and mechanical parts do not interfere with each other, making the product safer.

360° Rotation Function: It is convenient for online use with equipment with discharge ends in different directions, adapting to different production scenarios

Certification and Compliance: The equipment meets the certification requirements of HACCP, PDA, GMP and CE

1.Which certificate do you have ?

 Smooth surface, easy to clean, no dead space,meet GM, have CE and ISO900 certificate.

2.Which documents do you provide for this metal detector combined with capsule polishing machine?

Our standard is IQ,OQ,PQ,Manual,FAT,MOC documents

3.What is the Minimum detectable foreign body size?

Fe 0.2mm,NoFe 0.3mm,SUS 0.4mm.

4.What is the contact parts material

SS316L or food grade PC

5. What is the Data Management Functions？

Audit Trail function,meet CFR part11

6.What is the advantage metal detector combined with capsule polishing machine?

It is easy to operation and manitenance;

Save space for installation

Data Unification

High production efficiency: seamless process integration

7.Do you have working video of this machine?

You can check the video link:

https://youtube.com/shorts/zM6ec8onxz8?si=-Dypa1hso-vcIPYS

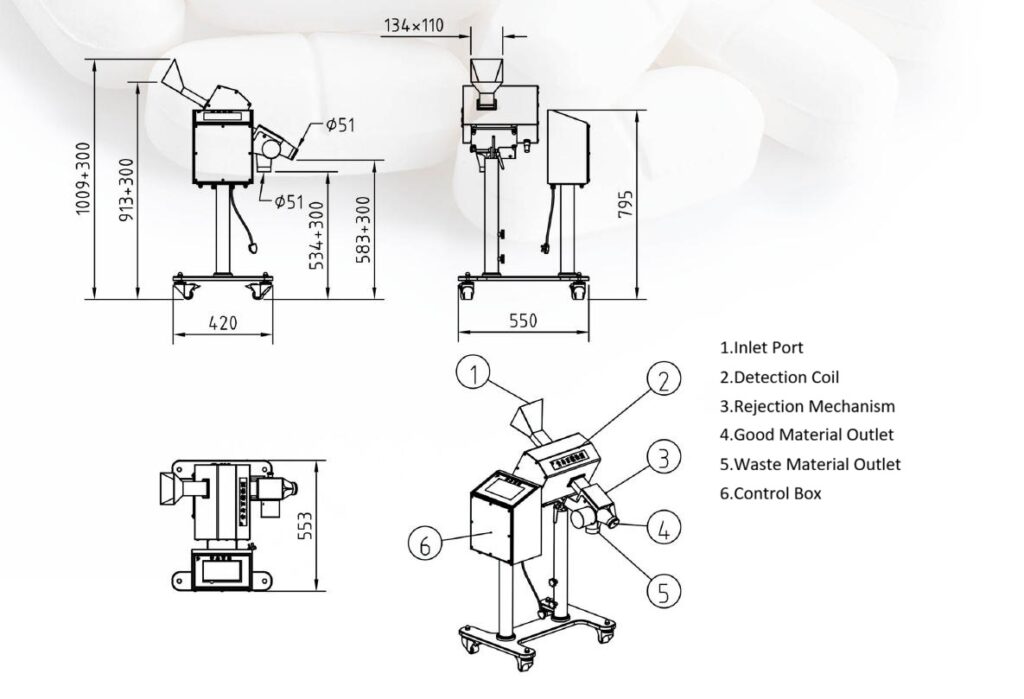

Parameters & Layout Drawing

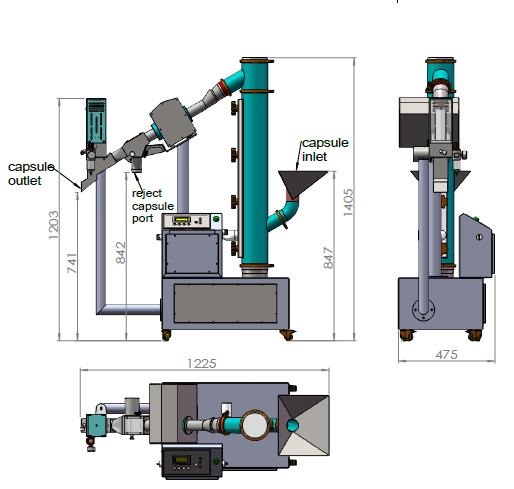

3D layout drawing
