Semi Auto Capsule Filling Machine
What is the semi auto capsule filling machine
Definition: It is between manual and fully automatic machines, suitable for small to medium batch production.
Core Features:
Application:
What is the advantage of fillitech's semi auto capsule filling machine

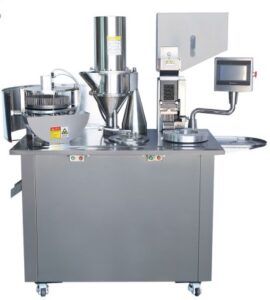

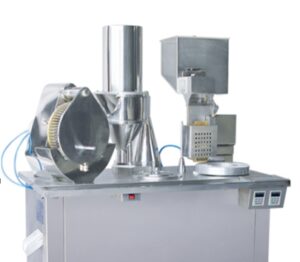

1.There are three models to meet different customer’s capacity and budget. Such as one feeder and two feeder model, button control and screen control model.

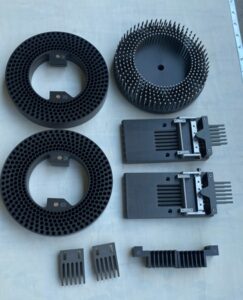

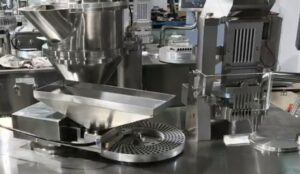

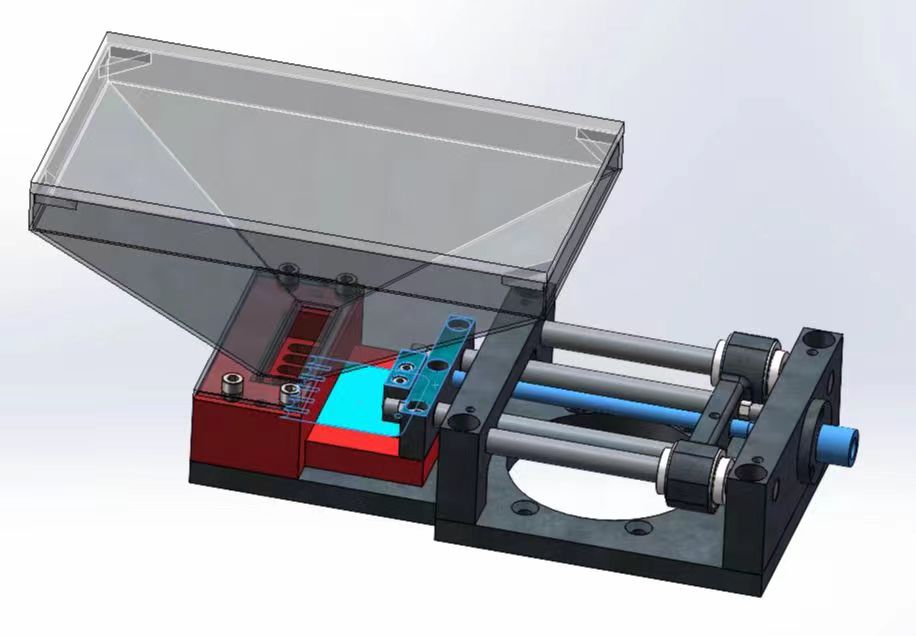

2.It can fill powder,pellet even powder +pellet in one capsule,without change any parts.Please check the pellet feeding device 3D photo and real product photo. It also works for different size of capsule,one set change parts as the below photo.
3.What is the parameters of semi auto capsule filling machine
| Single feeder | Double feeder |
Capacity | 5/6/7 capsule/time | 10/12/14capsule/time |
10000-22500cap/h | 20000-40000cap/h | |
Capsule size | 00# ～ 4# | |
Compressed Air | 0.03m3/min 0.7Mpa | |
Vacuum pump | 40m3/h | |
Total Power | 220/380V 1/3Pharse 5kw | |
Size | 1300*700*1650mm | |
Weight | 420Kg | |
